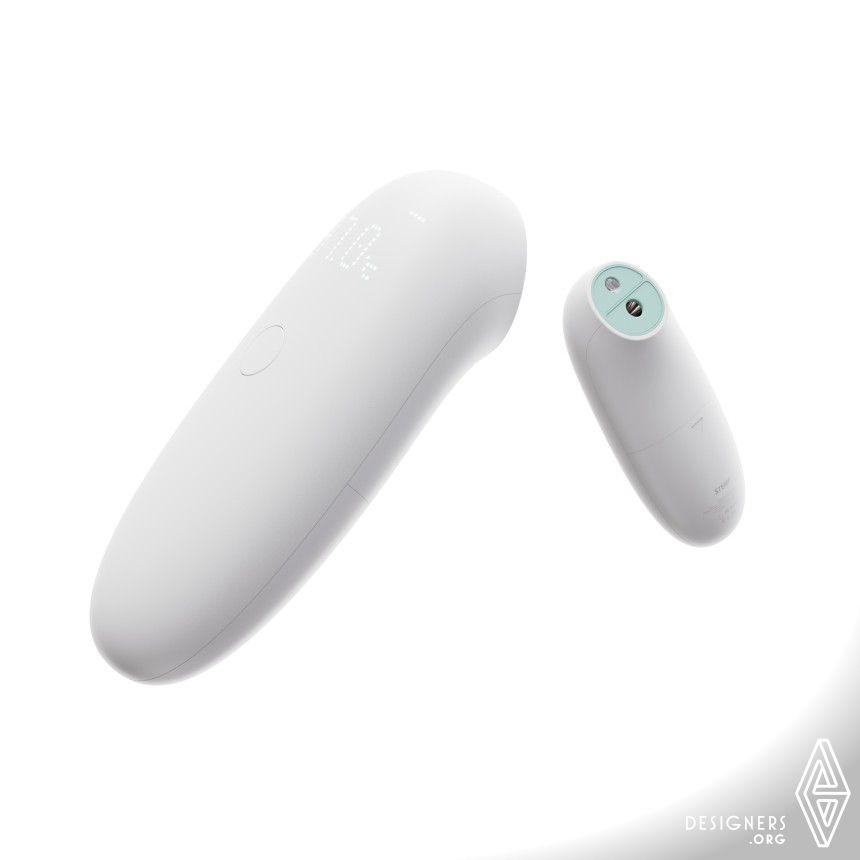

Warmth of Projection Electronic Thermometer

Press Kit

Unique Properties

The team design the cordial and gentle product feeling shape, and try to make the whole temperature measurement process easy and fast. The team realized a subconscious psychological action that glancing at the display screen, a feeling of wanting to know current temperature. Therefore, it eliminates some anxiety in the process of temperature measurement by shifting the focus of the person being tested. The design use the principle of convex lens imaging to project the temperature number displayed by LED on the arm.

Dimensions & Packaging

Width 50mm x Depth 35mm x Height 122 mm,weight is 62.4g.

Tags

Thermometer, Projection, Medical, Health, Interaction, Sustainability, Electronic, Society

Production Technology

Statistics of the mean distance between the thermometer and the arm during temperature measurement. The design use the principle of convex lens imaging to magnify the temperature displayed by the LED and project it onto the arm of the tested person.
Reduce production costs by using plastic injection molding processes to produce shells and assembly using common parts.

Design Challenge

The team hope to change the temperature measurement experience with a sustainable design that can be immediately put into the market and has low cost. During the design process, team have been thinking about how to relieve people's anxiety and uneasiness in the process of temperature measurement under the epidemic through design. Finally, team found a kind of subconscious psychological action of the tested person and used it to relieve anxiety and uneasiness.

Project Duration

The project began in Zhengzhou in July 2020 and was completed in Shanghai in September 2020.

Operation Flow

During using, the temperature will be projected onto the arm of the subject, thus shifting the subject's attention from the thermometer to the arm temperature. This will not only let the subject know the current temperature, but also reduce the excessive attention to the thermometer, thus eliminating the subject's anxiety. There is a two-way interaction between the thermometers and their subjects through a projection of temperature, a small projection of warmth gives a relaxation to the public under the epidemic.

Research

People's way of life has changed under the pressure of the epidemic, and the invisible pressure has intensified in each temperature measurement. This design study hopes to improve the process. The core of the project is the unconscious behavior that people want to know the temperature when they measure the temperature and the sense of peace brought by the rounded curve, so that people can feel a warmth in the epidemic situation through the design.

Inspiration

In the environment of the epidemic, every temperature measurement seems to be a trial. During the constant simulation of the actual temperature measurement scene. The team realized a subconscious psychological action of the tested person that " glancing at the display screen, a feeling of wanting to know current temperature". Therefore, the design want to eliminate some anxiety in the process of temperature measurement by shifting the focus of the person being tested.

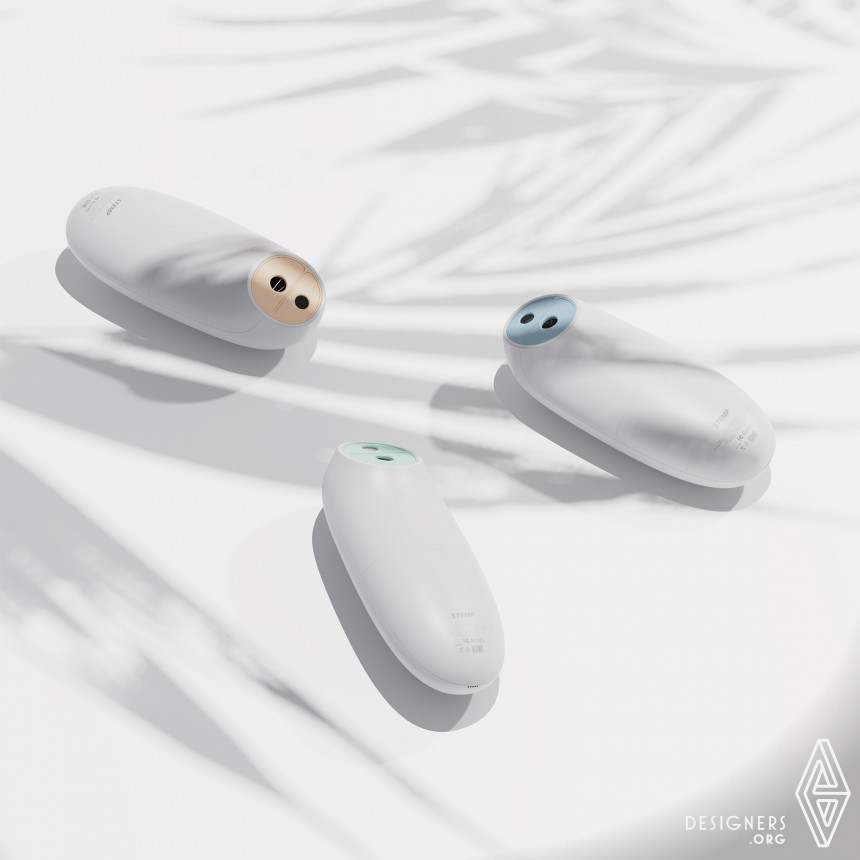

Colors of Warmth of Projection Electronic Thermometer
