Rapid Security Check Self-Service Express Lane
- A' Design Award 2022 Iron Winner in Security, Safety and Surveillance Products Design
- Awarded April 15, 2022
- CLIENT: Liaoning Petrochemical University（School of Art and Design）
- Estimated Number of Design Views: 27,791
- Verification code 438EFDCA2B · Verify this award
About Rapid Security Check Self-Service Express Lane
Rapid Security Check is a self-service security lane designed for checkpoints on subways and high-speed trains. The lane contains two screening channels. Passengers walk through as usual and push a suitcase directly through the lower screening machine. Small items are placed in the upper channel. Screening is based on X-ray detection. The outer shell is made by a sheet metal process, which is light, strong, low in cost and suited to large-scale production. The overall size is 1500 by 650 by 1450 millimeters. The layout follows ergonomic principles and keeps the screening process smooth.
Press Kit
- Unique Properties
- "Rapid Security Check" is a self-service security express lane to improve the efficiency of safety checkpoints on subways and high-speed trains. People push the box to walk as usual, the box directly pushed through the check machine. This design adopts two layers of check at the same time, small items can be placed in the upper. The machine conforms to the principle of ergonomics and can ensure smooth screening process.
- Dimensions & Packaging
- 1500mm*650mm*1450mm
- Tags
- Security check channel, self-service, convenient, fast
- Production Technology
- This product shell production adopts sheet metal process, light weight, high strength, low cost, can be large-scale production; The working principle of the security inspection machine is the X-ray detection principle.
- Design Challenge
- For security facilities, it is necessary to consider the working principle of the operation process, such as the working principle of X-ray baggage security machine and how to systematically complete the whole process to improve the efficiency.
- Project Duration
- The project began in January 2020 in Fushun, Liaoning Province, China, and ended in November 2020 in Fushun, Liaoning Province, China. 2020 Goldreed Industrial Design Award, Xiongan New Area, Hebei, China.
- Operation Flow
- Rapid Security Check consists of two layers of screening channels. When passengers go through it as usual, they can push the suitcase directly through the lower check machine. Small items can be conveniently placed in the upper channel, which ensures smooth security check process.
- Research
- At present, subway and high-speed rail have become important means of transportation in China,which brings great convenience to people's life but also has some hidden troubles. Traditional screening machines use metal gates, which take two seconds to complete, but actually take longer for a variety of reasons. "Rapid Security Check" can realize self-service rapid security check during walking to meet people's travel safety and enhance consumers' happiness in using the product.
- Inspiration
- The rapid development and convenience of public transportation promotes the passengers' traffic increasing. Inthecaseofsubways and high-speed trains, due to the safe operation under high pressure. Ride in the peak hours, staff is relatively dense, safety and manage is relatively hard. Traditional security check procedures are mainly manual and complicated. With the development of technology, more convenient and self-service security express lane is the development trend.
- Image Credits

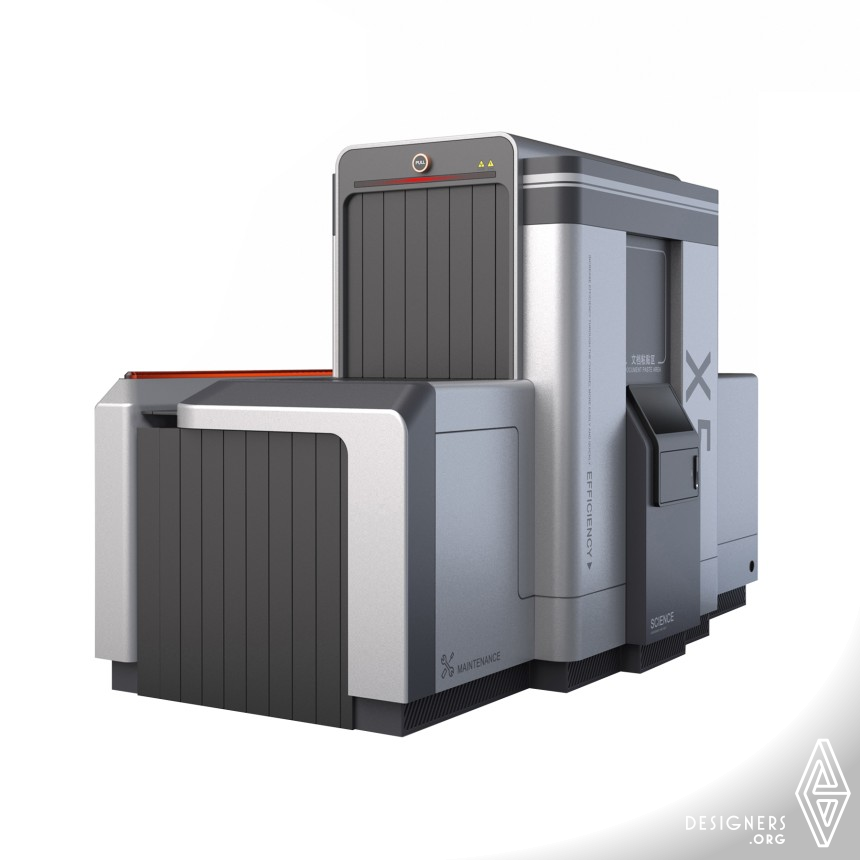

- Image #1: Photographer Yu Jiang, Variations, 2020.

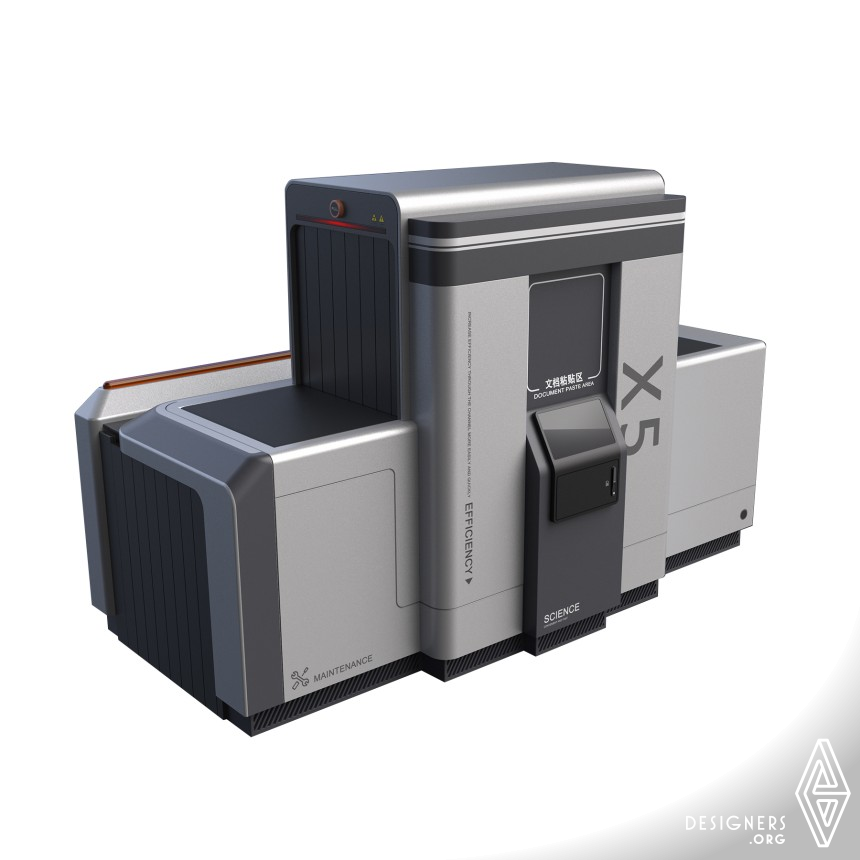

Image #2: Photographer Yu Jiang, Variations, 2020.
Image #3: Photographer Yu Jiang, Variations, 2020.
Image #4: Photographer Yu Jiang, Variations, 2020.
Image #5: Photographer Yu Jiang, Variations, 2020.
