About VMware Configuration Management
VMware vSphere Advantage Configuration Management is a user interface for managing configurations in on-premises data centers. Information technology administrators can create configuration templates, combine the templates into desired state profiles, and assign each profile to a server. The system compares current settings with the assigned profile at scheduled intervals and reports any drift on a central dashboard. Role-based access control and audit logs support compliance. The centralized approach reduces manual work and configuration errors.
Configuration Management by Bing Wu situates itself within the evolving landscape of enterprise software interface design, a domain where visual clarity, information architecture, and systematic organization serve as the primary vehicles for complex data communication and operational oversight. This dashboard interface demonstrates the sophisticated visual language that has emerged from decades of human-computer interaction research, drawing upon principles established by pioneering interface designers and information architects who recognized that screen-based environments require distinct compositional strategies compared to traditional print or environmental graphics. The work reflects the influence of data visualization thought leaders and the broader movement toward dashboard-driven business intelligence, where real-time operational metrics become immediately graspable through carefully orchestrated visual hierarchies and chromatic coding systems. The technical execution reveals considerable accomplishment in balancing competing demands inherent to enterprise software design, where dense informational requirements must coexist with visual clarity, systematic organization must accommodate varied user expertise levels, and functional complexity must present through approachable visual vocabulary. The tripartite compositional structure demonstrates thoughtful information architecture, dividing configuration monitoring across three distinct infrastructural domains, each receiving equal visual weight and parallel organizational treatment, allowing users to scan horizontally for comparative assessment or focus vertically within individual categories. The circular donut chart visualizations represent a particularly effective formal choice, their radial geometry naturally suggesting completeness and proportional relationships while their chromatic gradient treatment enables intuitive categorical distinction between compliant, drift-detected, and unavailable states without requiring legend consultation for experienced users. The color strategy exhibits sophistication beyond mere decoration, employing a restrained cool-dominant background palette that recedes visually while allowing informational content and interactive elements to advance through carefully calibrated chromatic accents, the vibrant cyan-magenta-purple gradient scheme serving both aesthetic and functional purposes by creating memorable categorical associations that persist across user sessions and support rapid pattern recognition during routine monitoring workflows. The responsive design implementation visible through the dual-device presentation suggests thoughtful consideration of contemporary multi-platform usage patterns, demonstrating how information hierarchy and visual relationships can maintain integrity across dramatically different viewport dimensions and interaction paradigms. Thematically, this interface explores the fundamental challenge of rendering invisible digital infrastructure operations visible and comprehensible, translating abstract configuration states and drift patterns into concrete visual forms that enable informed decision-making and proactive system management. The work participates in the broader design conversation around enterprise software humanization, the ongoing effort to make powerful but complex business tools more approachable and less intimidating through visual refinement and thoughtful interaction design. One might observe how this interface invites contemplation of the relationship between visual design and operational confidence, the ways that systematic organization and chromatic clarity can reduce cognitive load during high-stakes administrative tasks, and the evolving expectation that enterprise software should deliver both functional power and visual sophistication rather than treating these qualities as opposing concerns.
Press Kit
- Unique Properties
- VMware vSphere Advantage Configuration Management offers a standardized, automated UI process for managing on-prem data centers, focusing on achieving a desired state. IT admins can define and monitor large-scale configurations, track and fix changes, and ensure compliance. This centralized platform enhances security, reduces errors, and promotes scalability, streamlining processes and improving customer experiences. Its innovative approach has been recognized with a utility patent filing in the US/IND.
- Dimensions & Packaging
- 1. System Requirements:
vCenter Version: The Configuration Management features require vCenter 8.0.3 or later. This ensures compatibility with the latest tools and functionalities offered by VMware vSphere+.
2. Architecture:
2.1 Components: The system includes vCenter Servers, Clusters, and ESXi Hosts. These components are integrated within the VMware vSphere+ platform, which centralizes management and configuration tasks.
2.2 Data Flow: Configuration data is extracted from vCenter Servers, processed through Configuration Templates, and compared against Desired State Profiles. Any discrepancies are flagged as configuration drifts, which administrators can address directly from the dashboard.
3. Key Features:
3.1 Configuration Templates: IT Administrators can create templates by selecting specific configuration settings from a vCenter Server. These templates are reusable and can be combined to form Desired State Profiles.
3.2 Desired State Profiles: These profiles are created by combining multiple Configuration Templates. Administrators can prioritize templates to resolve conflicts and assign profiles to vCenter Servers for ongoing drift detection.
3.3 Drift Detection: The system automatically checks for configuration drifts at scheduled intervals, comparing current settings with Desired State Profiles. Detected drifts trigger alerts, allowing administrators to take corrective actions.
4. User Interface:
4.1 Dashboard Customization: The dashboard is highly customizable, allowing administrators to define which configuration metrics are displayed. This helps focus on critical areas.
4.2 Reporting: Drift checks can be scheduled, and reports are sent via email. The reports include detailed information about the compliance status of each monitored component, making it easy to track and address issues.
5. Security and Compliance:
5.1 Access Control: Role-Based Access Control (RBAC) is implemented to restrict access based on user roles. This ensures that only authorized personnel can create, modify, or apply Configuration Templates and Desired State Profiles.
5.2 Audit Trails: The system logs all changes made to configurations, providing an audit trail that can be reviewed to ensure compliance and accountability.
6. Scalability and Flexibility:
6.1 Scalability: The system is designed to scale efficiently with the number of vCenter Servers and ESXi Hosts. As the infrastructure grows, the performance of Configuration Management remains robust, handling larger volumes of configuration data without degradation.
6.2 Flexibility: The platform supports a wide range of configuration settings and can be adapted to various IT environments, making it versatile enough to meet different organizational needs.
7. Performance Metrics:
7.1 Efficiency Gains: The automated configuration management process significantly reduces the time and effort required to manage settings across multiple servers, minimizing the risk of human error and ensuring configurations remain compliant with desired states.
7.2 Uptime and Reliability: By preventing configuration drift, the system helps maintain high uptime and reliability. Regular drift checks ensure that potential issues are identified and resolved before they impact operations. - Tags
- User Experience Design, User Interface Design, UX, UI, Communication Design, Enterprise Software Design, Interaction Design
- Production Technology
- The project's design is driven by early research, comprehensive surveys, and competitive analysis to meet user needs and stand out in the market. User testing refines features, ensuring a user-centric approach. Collaboration with IT professionals aligns the design with real-world requirements. The final product offers an intuitive interface, extensive customizability, and enhanced security and efficiency, all shaped by direct feedback and iterative testing, ensuring a seamless and engaging user experience.
- Design Challenge
- The creative challenge was designing a user-friendly interface for VMware vSphere+ Configuration Management amidst complex, large-scale data center configurations. Obstacles included balancing detailed control with simplicity and ensuring scalability. Internally, historical complexities of traditional systems and evolving user needs shaped our approach. Externally, constraints included compliance with data security laws and integrating with existing technology stacks. Overcoming these involved innovative design solutions and leveraging advanced technologies for seamless functionality.
- Project Duration
- The project started in August 2022 and launched in August 2023.
- Operation Flow
- 1. Operation: The project uses VMware vSphere+ to manage and monitor configuration settings across vCenter Servers, Clusters, and ESXi Hosts, detecting and correcting configuration drifts through a centralized dashboard.
2. Transformation: It transforms by continuously comparing current settings with predefined Desired State Profiles, ensuring compliance and alignment with best practices.
3. Interaction: IT Administrators interact via a user-friendly interface to create Configuration Templates, define Desired State Profiles, and monitor drifts, with detailed configuration views in JSON and table formats.
4. Key Frames: Key steps include creating Configuration Templates, defining Desired State Profiles, and scheduling drift checks.
5. Better Performance: The system improves results by automating drift detection and correction, ensuring consistent, compliant configurations. It enhances performance by reducing human error and improving operational efficiency through centralized, automated configuration management. - Research
- Type of Research: Quantitative/Qualitative UX Research
Research Objectives: To enhance the usability of VMware vSphere Advantage Configuration Management
Methodology: Surveys, interviews, Usability testing
Data Collection and Research Tools Used: Microsoft Forms, UserZoom
Participants: IT admins managing data centers
Results: Improved interface efficiency and user satisfaction
Insights and Impacts: Streamlined configuration processes, reduced errors, and enhanced scalability
Effect in Real-Life Phenomena: Boosted operational efficiency for businesses, improved data center management, and set a new standard in UI design for complex systems. - Inspiration
- Our customers face challenges managing software configurations across distributed systems due to the lack of a centralized platform, leading to complexity and inconsistency. Our solution streamlines configuration management with customizable segments tailored to specific needs, enabling easy assembly into a 'golden' configuration for consistent deployments across all system layers. This centralized UI platform enhances security, reduces errors, and promotes scalability, resulting in improved CX.
- Image Credits
- Main Image: Creator Bing Wu, Key Screen on Desktop and iOS Applications, 2023
Image #1: Creator Bing Wu, Welcome Screen, 2023
Image #2: Creator Bing Wu, Configuration Tab, 2023

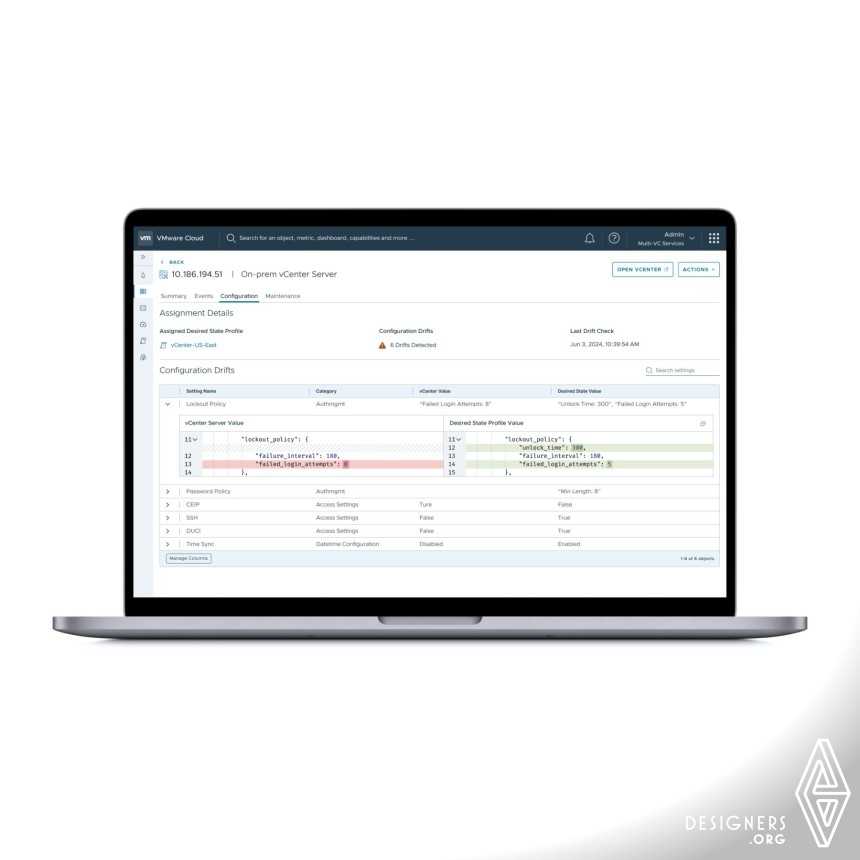

Image #3: Creator Bing Wu, Configuration Drifts, 2023
